JEEP WRANGLER-X009 – 9″ Premium Navigation Solution

Be king of the road in your Jeep Wrangler with Alpine’s X009E-U 9″ Multimedia Navigation solution.


Signature Car Sound – Home of Alpine Car Sound on the Sunshine Coast


This product has been discontinued.



9″ Premium Navigation Multimedia Station

Entertainment is bigger and brighter than ever

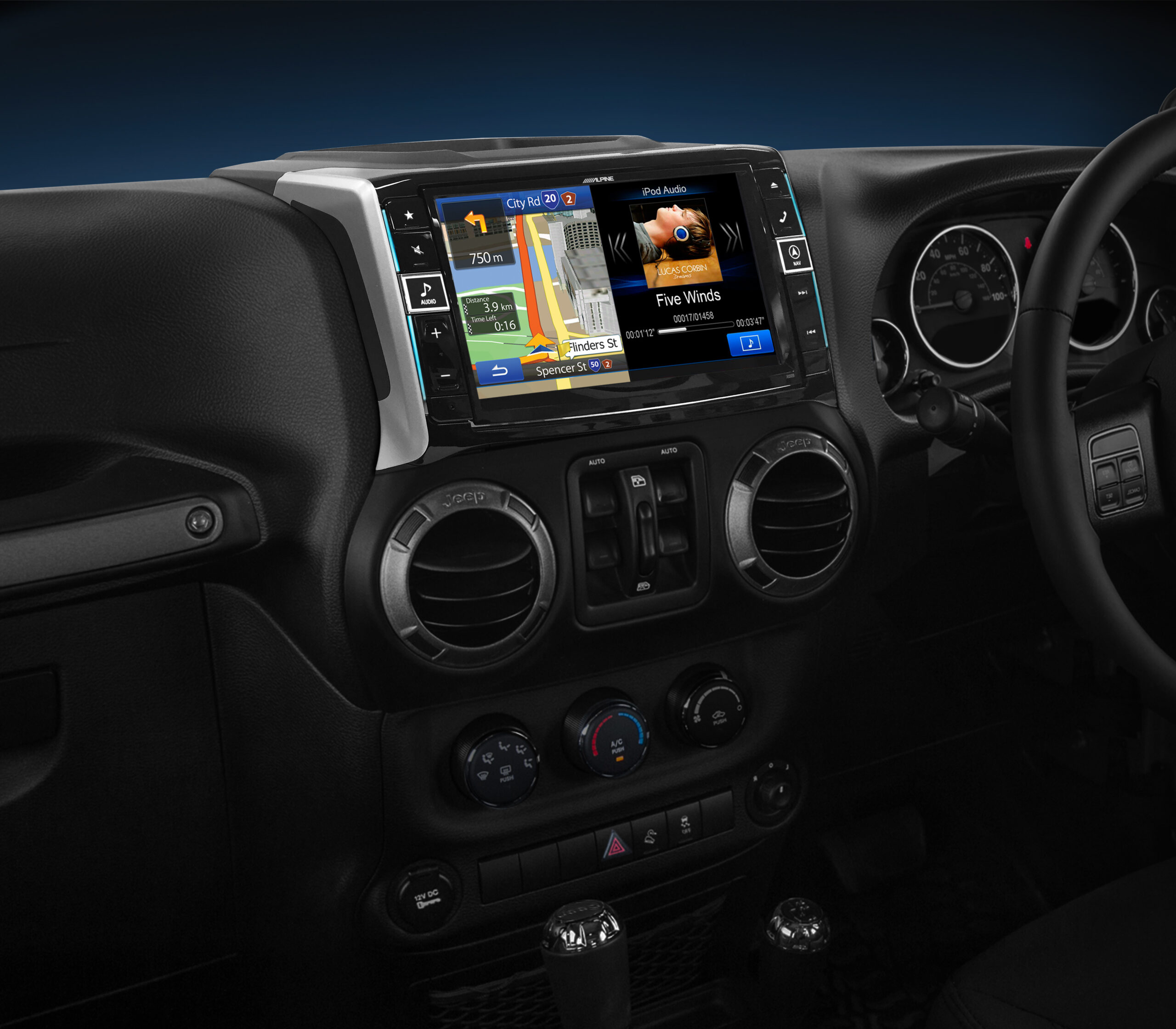

jeep-wrangler-png-imYour dashboard will larger than life with the premium restyle, while Alpine integration keeps your factory steering wheel controls. What’s more , enhancements like Navigation, Bluetooth and advanced sound settings optimised for your Wrangler are all controllable through the Alpne X009E-U 9″ Touch screen.

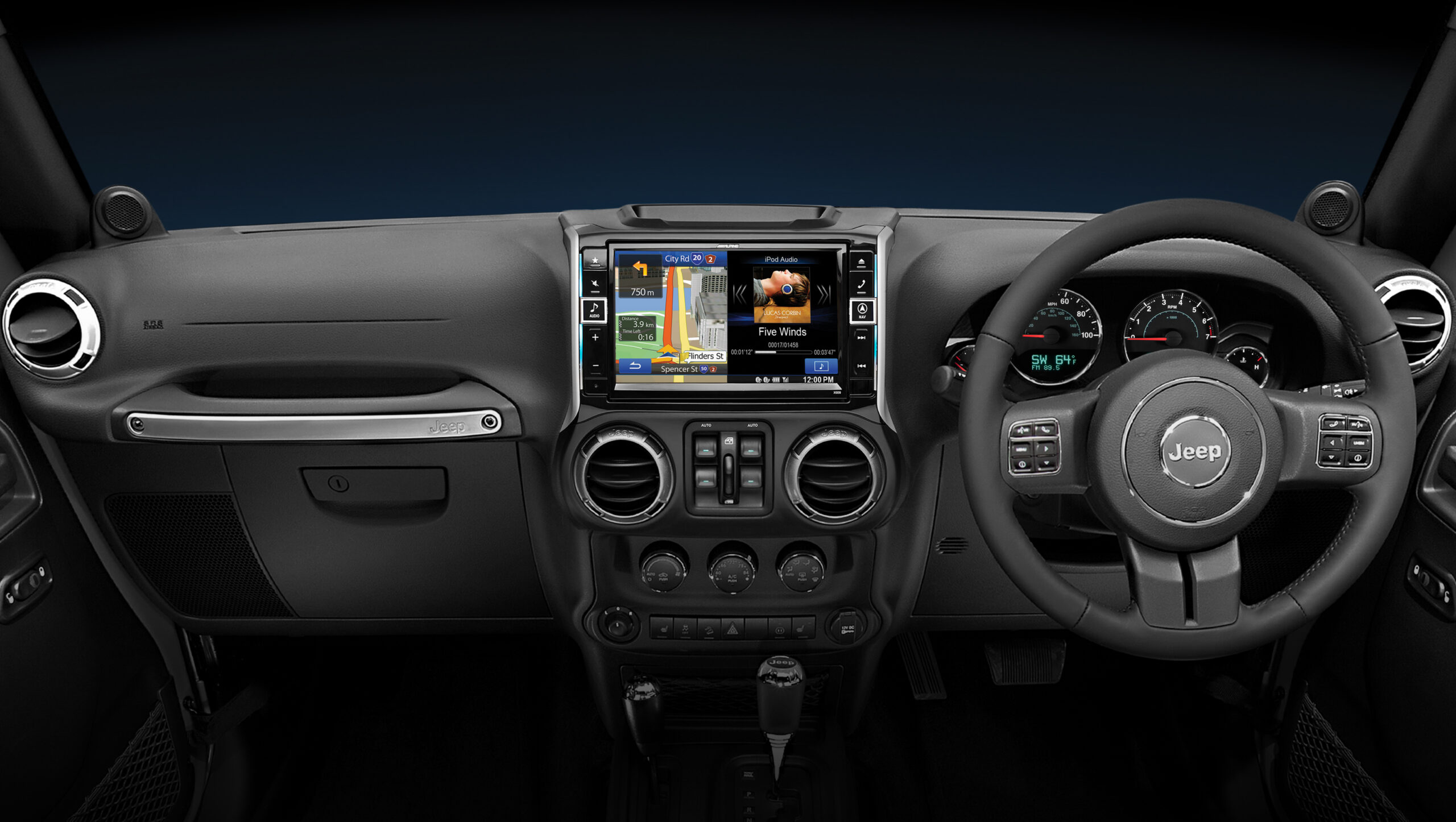

JEEP WRANGLER-X009Your Life Is An Adventure.

Alpine’s advanced off road navigation let’s you go further and explore more with a comprehensive database of 4WD tracks, POI and destinations.

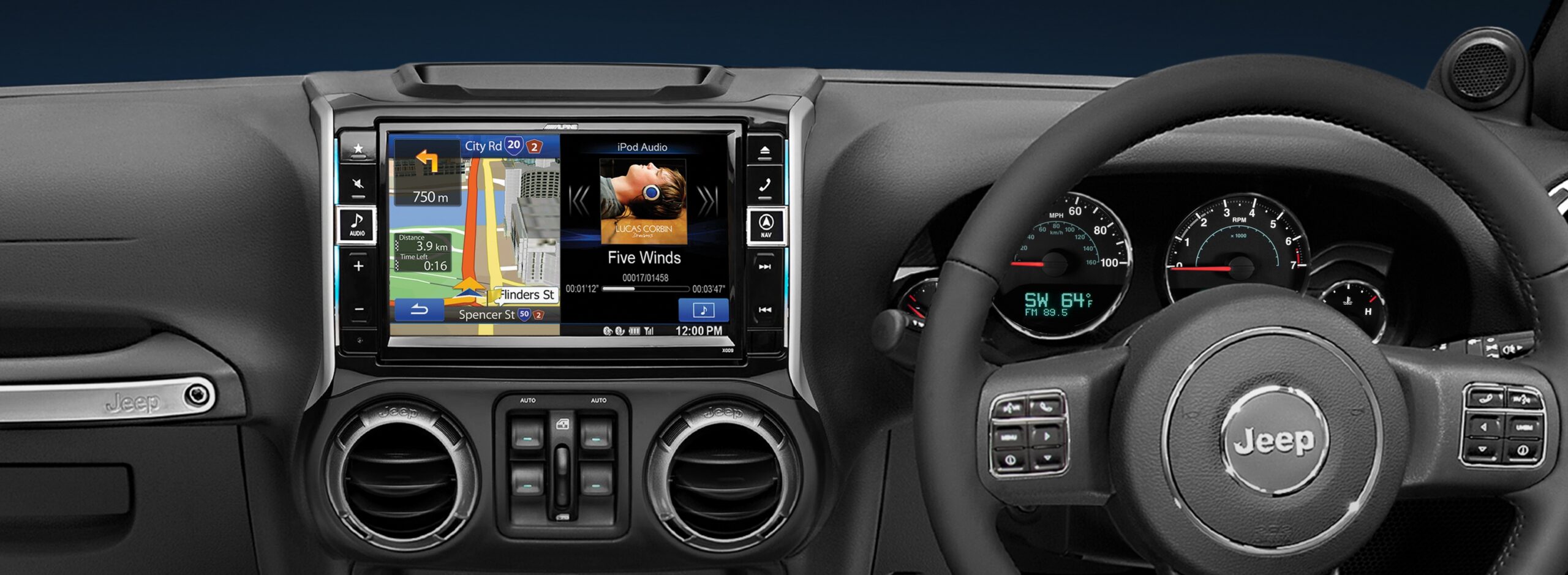

Wrangler_X009E_Landscape_cropped (2)

Quality Hard Keys You Can Feel

The Alpine X009E-U is equipped with external dedicated quality hard keys. The hard keys are uniform for a friendly custom dash integration and gives quick access to core functions such as navigation, sound control, vehicle information, volume, phone access, My Favorites and rear camera view (when used with an optional camera system).

Customizable Short-Cuts At Your Fingertips

The My Favorites features offers up to ten pages of eight shortcuts per user for the features that you use the most, such as:

  • Audio Sources ( Pandora®, iPod®)
  • Phone Settings (Most-dialed Contacts)
  • Navigation Commands (Favorite Destinations, Quick Place Search)

A new shortcut soft key within all audio and hands-free sources makes it even easier to add sources than before. Set up “My Favorites” for up to two users on the Alpine X009E-U. Easily add, delete, re-name, and re-arrange your short-cut icons by dragging the icon(s) to a new location on the screen. Your settings are kept as a personal profile linked to your phone via Bluetooth.

See Beyond Traditional Blind Spots

Alpine makes it easy to add Drive Assist camera systems to any Alpine AVN system. Choose from a variety of camera systems that make parking a breeze. Alpine cameras are durable and specifically designed for wide-angle and multi-angle views for front and rear applications. A direct connection ensures the highest picture quality for day or night use. All camera solutions are a perfect match with Alpine’s in-dash AVN systems, but they are also compatible with screens from other manufacturers.

Become a Tuning Expert with Alpine TuneIt App Integration

  • Expanded vehicle choices for easier sound system tuning
  • Share your sound tunings on Facebook
  • BassEngine SQ adjusts bass characteristics for different types of music
  • Simple and easy on-screen Facebook notifications

Get the Best Sound with Optical Digital Output

For unrivalled sound quality, expect nothing less than the best. The Alpine X009E-U uses a 24-Bit DAC and optical digital output for ultimate sound quality with all your digital media sources.

Wherever Life Takes You, You’re Covered

The Alpine X009E-U offers reliable navigation to wherever work or play may take you with preloaded NAVTEQ HERE® map data of Australia. With turn-by-turn instructions delivered by Text-to-Speech (TTS) technology, street names, freeway numbers and freeway exit names are announced clearly through your vehicle’s audio system. Choose from different intuitive map view options, such as 3D mapping, split map, and turn-by-turn arrow view. This unit also features Alpine’s exclusive Graphical User Interface with intuitive screen graphics, so it’s easy for you to find your way. Get quick and easy directions from start to finish.

HDMI: More Entertainment With Just One Cable

Now it’s possible to enjoy even more content than ever before through your X009E-U. The Alpine 9-inch comes equipped with HDMI compatibility delivering an all-digital audio and video connection via a single cable.

Made for iPod® / Works with iPhone®

It’s convenient to control your iPod or iPhone in the car – enjoy seamless operation of your iPod in addition to full control of all your favorite media sources. Control all search options of your iPod directly from the Alpine X009E-U via Playlist, Artist, Album, Song, Genre, Podcast or Composer. The USB connection allows for high-quality iPod / iPhone playback and delivers an even faster access speed so you’ll find songs as quickly as you expect to find them on your iPod / iPhone.

Entertainment is bigger and brighter than ever to enjoy stunning playback of music and video from CD/DVD, iPod/iPhone and USB devices.

The HDMI input enables display of video and content output from compatible smartphones and devices. Built-in Bluetooth provides audio streaming and full hands-free operation with access to phonebook and advanced functions such as voice control.

Its innovative ‘One-look Navi’ allows a 50/50 split screen mode which displays navigation and the selected source for convenient operation and information at a glance. With its premium navigation you have high-resolution maps with SunaTM live traffic updates, text-to-speech, 3D landmarks, fixed speed and red light camera alert, 4WD off-road maps and an enhanced POI database.

Sound tuning options include built-in Bass Engine SQ and tuning adjustment via Alpine’s TuneIt app for iPhone and Android. This enables precise and personalised system tuning for the very best in sound quality.

With its innovative ‘One-look Navi’ allows a 50/50 split screen mode which displays navigation and the selected source for convenient operation and information at a glance.

Enjoy stunning playback of music and video from CD/DVD, iPod/iPhone and USB devices.

The HDMI input enables high resolution display of video and content output from HDMI sources and compatible smartphones, and MirrorLink lets you connect to compatible devices to play music, use apps and navigation.

Plus, built-in Bluetooth Plus provides audio streaming and full hands-free operation with access to phonebook and advanced functions.

What’s more, sound tuning options include the Alpine TuneIt app for iPhone and Android, and built-in Bass Engine SQ, allowing precise personalised tuning for the best sound quality.

Create Your Ultimate Custom Installation!

Let your installation creativity run free, the Alpine X009E-U lets you design, build and fabricate the ultimate in-dash installation with an enormous 9? panel.
The included universal installation parts along with outer frame make custom installation with a professional finish possible. By using the existing frame panel, precision grafting into the existing OEM dash panel or customising of an aftermarket dash panel can be achieved by experienced installers.

Additionally, the supplied universal mounting brackets enables versatility to mount the main chassis as well as the key unit securely.



JEEP WRANGLER-X009 – Features

  • 9″ WVGA LED Touch Screen Display
  • DVD/DivX/MP3/WMA/AAC Playback
  • Made for iPod / iPhone
  • HDMI Input for Compatible Devices
  • MHL Support
  • 50W x 4 High Power Amp
  • 24 Bit DAC
  • 9-Band Parametric EQ
  • 6-Channel Digital Time Correction
  • 4WD Off Road Maps
  • MapCare 3 Year Updates
  • 3D Landmarks/3D City Models
  • WVGA High Resolution Anti-aliasing Maps
  • TMC Live Traffic Updates
  • My Favourites setup
  • Bluetooth Built-In With Audio Streaming
  • TuneIt App Ready
  • 3 Pre-Outs (4 Volt)
  • Optical Output (requires KWE-610A)
  • 2 AUX Inputs / 1 AUX Output
  • Dual Zone Media Playback
  • Direct & RCA Camera Inputs
  • Front & Rear Camera Buttons
  • Steering Wheel & IR Remote Ready



  • Screen Size: 9.0″
  • LCD Type: Transparent type TN LCD
  • Operation System: TFT active matrix
  • Number of Picture Elements: 1,152,000 pcs. (800 × 480 × 3 (RGB))
  • Effective Number of Picture Elements: 99% or more
  • Illumination System: LED


  • Tuning Range: 87.5 – 108.0 MHz
  • Mono Usable Sensitivity: 9.3 dBf (0.8 ?V/75 ohms)
  • Alternate Channel Selectivity: 80 dB
  • Signal-to-Noise Ratio: 65 dB
  • Stereo Separation: 35 dB
  • Capture Ratio: 2.0 dB


  • Tuning Range: 531 – 1,602 kHz
  • Sensitivity (IEC Standard): 22.5 ?V/27.0 dBf


  • USB requirements: USB 1.1/2.0
  • Max. Power Consumption: 1,000 mA
  • USB Class: USB (Play From Device)/USB (Mass Storage Class)
  • File System: FAT12/16/32
  • MP3 Decoding: MPEG-1/2 AUDIO Layer-3
  • WMA Decoding: Windows Media™ Audio
  • AAC Decoding: AAC-LC format “.m4a” file
  • Number of Channels: 2-Channels (Stereo)
  • Frequency Response*: 5 – 20,000 Hz (±1 dB)
  • Total Harmonic Distortion: 0.008% (at 1 kHz)
  • Dynamic Range: 95 dB (at 1 kHz)
  • Signal-to-Noise Ratio: 100 dB
  • Channel Separation: 85 dB (at 1 kHz)

* Frequency response may differ depending on the encoder software/bit rate.


  • Frequency Response: 5 – 20,000 Hz (±1 dB)
  • Wow & Flutter (% WRMS): Below measurable limits
  • Total Harmonic Distortion: 0.008% (at 1 kHz)
  • Dynamic Range: 95 dB (at 1 kHz)
  • Channel Separation: 85 dB (at 1 kHz)
  • Horizontal resolution: 500 lines or greater
  • Video output level: 1Vp-p (75 ohms)
  • Video S/N ratio: DVD: 60 dB
  • Audio S/N ratio: 100 dB


  • Wave length:
    • DVD: 666 nm
    • CD: 785 nm
  • Laser power: CLASS II


  • GPS Reception frequency: 1,575.42 ±1 MHz
  • GPS Reception sensitivity: -130 dB max.


  • BLUETOOTH Specification: Bluetooth V2.1+EDR
  • Output Power: +4 dBm Max. (Power class 2)
  • Profile:
    • HFP (Hands-Free Profile)
    • OPP (Object Push Profile)
    • PBAP (Phone Book Access Profile)
    • A2DP (Advanced Audio Distribution Profile)
    • AVRCP (Audio/Video Remote Control Profile


  • Power Requirement: 14.4 V DC (11–16 V allowable)
  • Operating temperature: -4°F to +140°F (-20°C to + 60°C)
  • Maximum Power Output: 50 W × 4
  • Weight: 2.9 kg
  • Audio output level:
    • Preout (Front, Rear): 4V/10k ohms (max.)
    • Preout (Subwoofer): 4V/10k ohms (max.)
    • AUX OUT: 1.2V/10k ohms (max.)

Due to continuous product improvement, specifications and design are subject to change without notice.

The LCD panel is manufactured using an extremely high precision manufacturing technology. Its effective pixel ratio is over 99.99%. This means that there is a possibility that 0.01% of the pixels could be either always ON or OFF.

*Alpine 3 Year Vision Warranty, as per Alpine Electronics Australia terms and conditions.

*Alpine 3 Year Map Care, terms and conditions apply.
